Technical product
Pallet trucks
Hilt pallet trucks for warehouse and dock work, in two drives: the hand-pumped DF30 rated for 3,000 kg, and the walk-behind electric TE220 rated for 2 tonnes with a lithium battery.
- DF30 · manual · 3,000 kg
- TE220 · electric · 2,000 kg
Product overview
- Models
- DF30 (manual) and TE220 (electric)
- Manufacturer
- Ningbo Huafeng Package Co., Ltd.
- Brand
- Hilt
- Country of origin
- China
- Warranty
- 1 year, both models
- Color
- Subject to availability
Manual pallet truck — DF30
- Load capacity
- 3,000 kg
- Steering wheels
- Ø180 × 50 mm
- Fork rollers, single
- Ø74 × 70 mm
- Lift height (h3)
- 190 mm
- Lowered height (h13)
- 75 mm
- Overall length (l1)
- 1,604 mm
- Fork dimensions (s/e/l)
- 54 / 160 / 1,220 mm
- Fork spacing (b5)
- 680 mm
- Turning radius (Wa)
- 1,319 mm
- Ground clearance (m2)
- 32 mm
- Tiller height
- ≈1,224 mm
- Quantity on supplier sheet
- 4 units

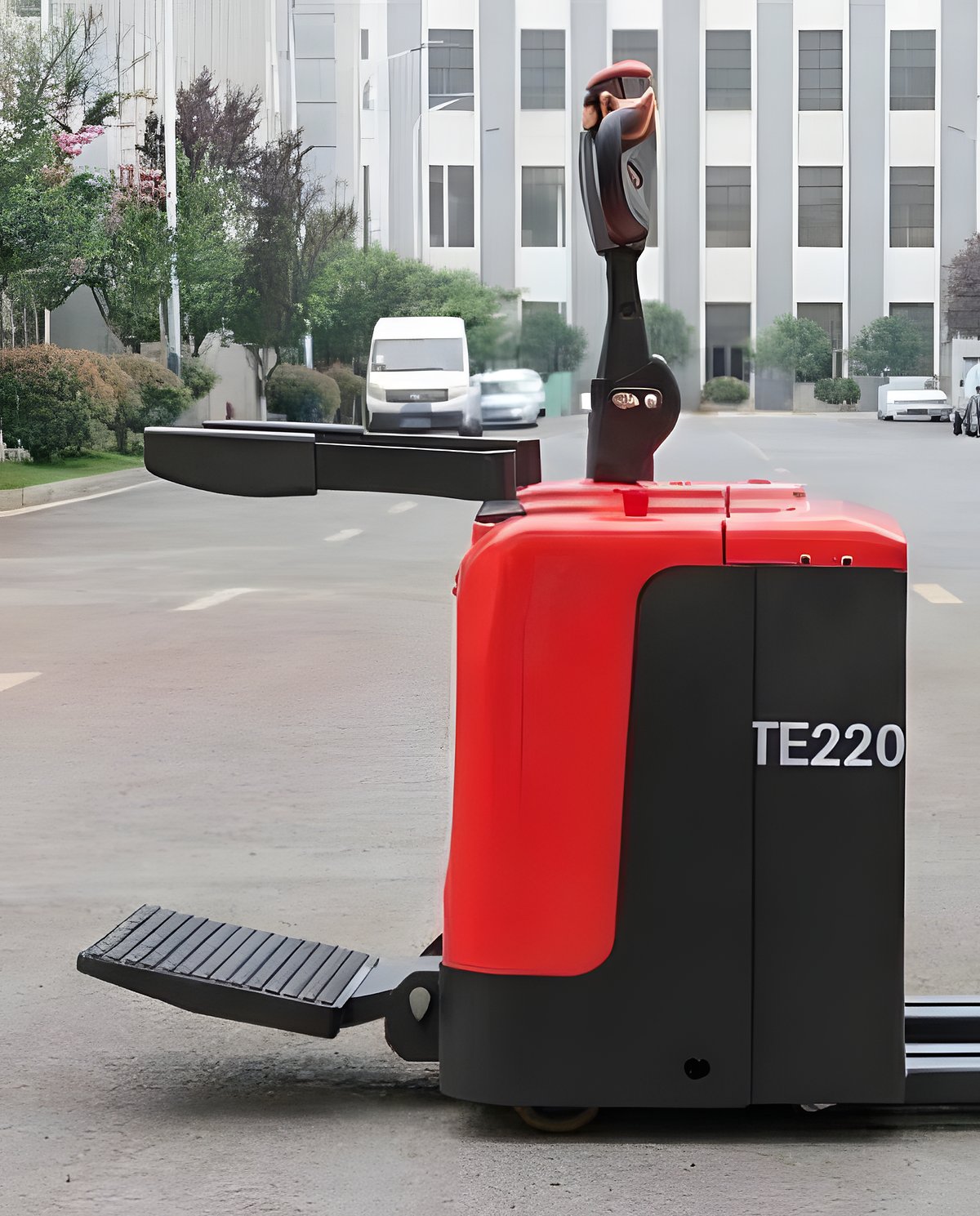

Electric pallet truck — TE220
- Load capacity
- 2 tonnes
- Drive
- Brushless AC motor, high efficiency
- Battery
- Lithium; stated service life of 7 years
- Attachment
- Integrated side shifter
- Wheels
- Polyurethane, tandem rollers
- Overall length
- ≈2.5 m, excluding forks
- Included equipment
- Charger, with installation
Values are translated from the supplier's Spanish technical sheets. Confirm final specifications and configuration with the supplier before procurement or deployment.
